ags white

AUTOMATED
GUTTER SYSTEM

Built to reduce overall overhead and increase efficiency, the AGS is focused on bringing automation to the small – medium sized greenhouse, and is engineered to fit any greenhouse size.

OVERVIEW    |    ADVANTAGES    |    AUTOMATIC SPACING    |    VIDEO

OVERVIEW:

One of the primary design requirements for this system was to keep both the germination and harvesting at the front of the greenhouse to increase operational efficiency for small growers

This is facilitated by two conveyor runs, one moving gutters to the back of the house and the other returning them to the front with an integrated transfer conveyor at the far end to shuttle gutters over.

The result: less walking down the length of the greenhouse and less manpower needed

For a demo and to learn more please contact Taylor Smith
‭(205) 902-3478‬     |     taylor.smith@lubingusa.com

P03_3539

Advantages of the lubing AGS

MODULAR DESIGN

The system can be configured to fit any size greenhouse and utilizes a modular design so gutter spacing is easily customizable

LESS MAINTENANCE

 No moving belts are necessary, reducing anticipated maintenance

Quiet operation

The system is also very quiet during indexing

Easy assembly

Assembly is straight forward and can be accomplished with minimal tools and legs are designed for easy height adjustment when grading the system for ideal water flow to the gutters

POWER SUPPLY

The system run on single phase, 120 volt so powering the controller is as simple as plugging it in to a standard wall outlet

WE BASED CONTROL OPTION

 Web based control allows the grower to monitor and index the system from a remote location with a smart phone or computer, and provides system diagnostics when Lubing’s technical support is needed

OPTIONAL TROLLEY

An optional trolley is available for maintenance access, moving items from the front to the back of the house, or can be equipped with a powered sprayer for treating crops

WALK THRU ACCESS

The gutter transfer is split for walk thru access and designed for safety to prevent injury

EASY WATER MANAGEMENT

Water supply is offered down the center aisle between runs for easy water management

AUTOMATIC SPACING AND INDEXING

PLANTS ARE PUT INTO THE GUTTERS

GUTTER SPACING IS AUTOMATICALLY ADJUSTED

AS THE PLANTS GROW MORE SPACE IS PROVIDED

AUTOMATIC SPACING CONTINUES THROUGH TO HARVEST

The AGS uses electric drives to automate the indexing of gutters thru the growing cycle, reducing labor and offering improved ergonomics to the grower. With this indexing multiple growing zones are achieved.

AGS increases the spacing between gutters at defined points in the system during the indexing operation. This is critical for airflow and optimal growing conditions when the baby leaf or head reaches a certain size and requires that extra space. And it’s achieved without disruption to the active flow of nutrient rich water into the gutter.

This approach allows us to keep gutters packed as closely together as possible for the plant’s size in its growing cycle, preserving as much greenhouse space as possible.

The result is maximum gutter density, delivering the highest possible yield for the greenhouse.

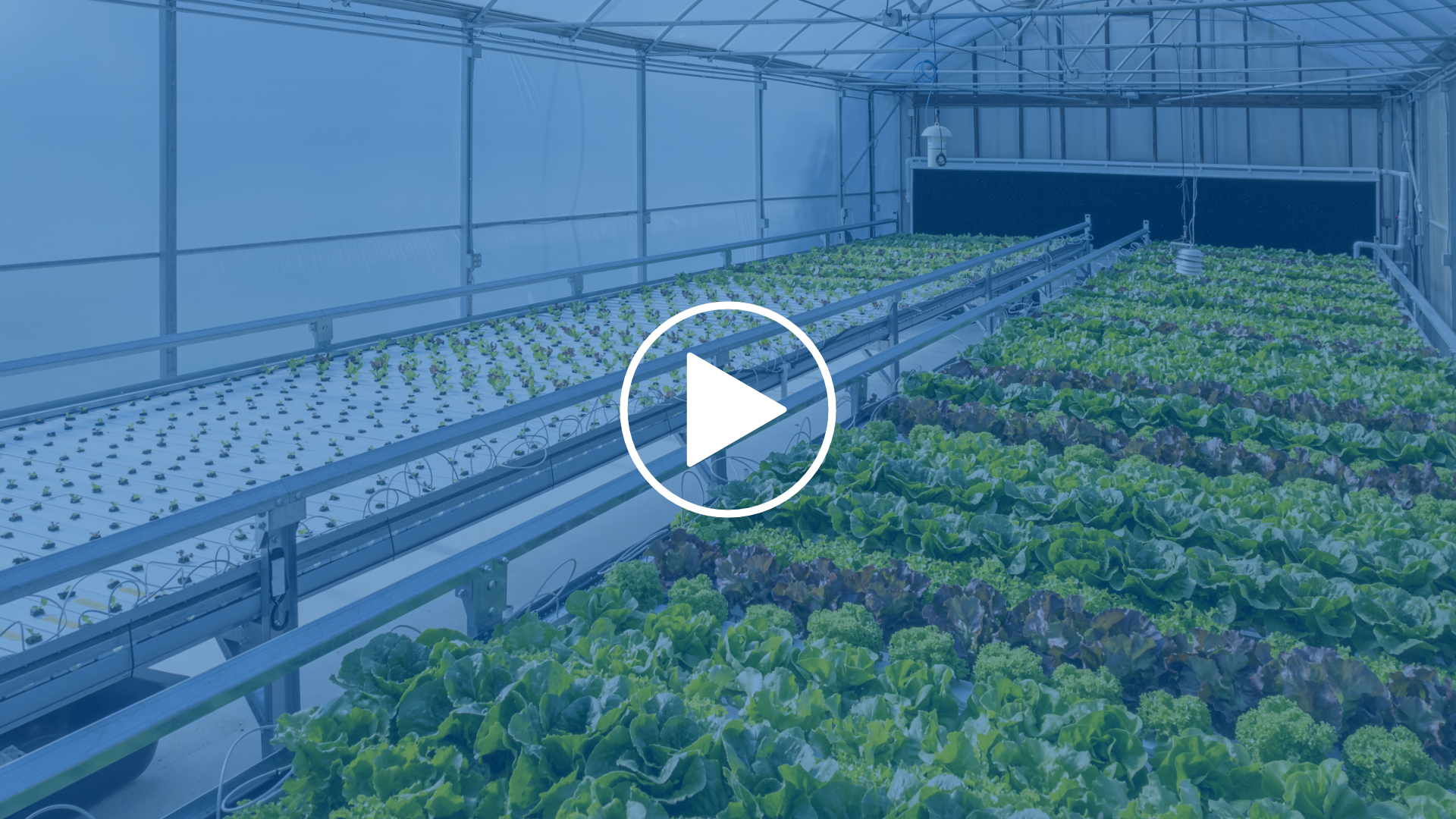

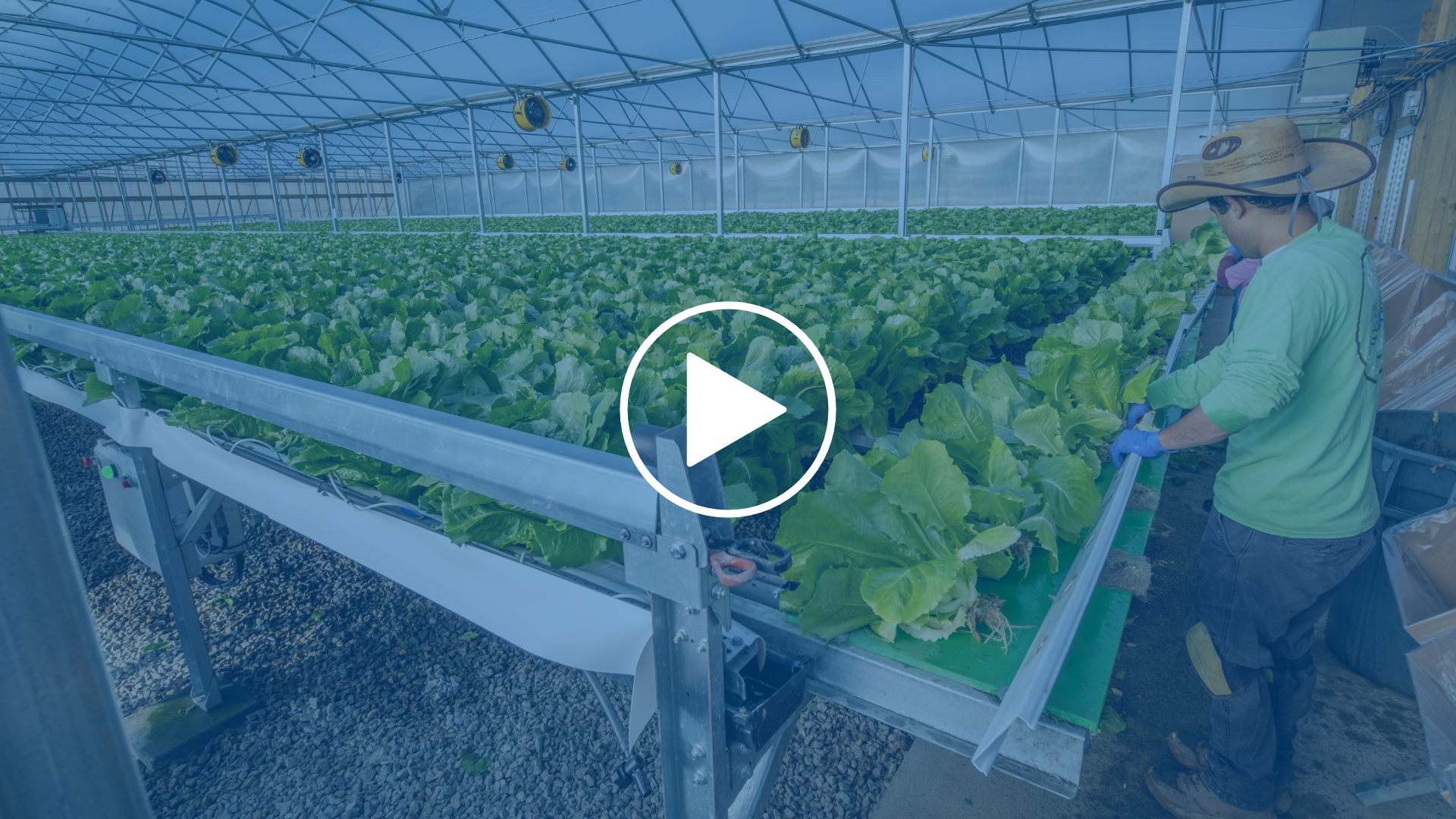

VIDEO OVERVIEW

video builder
Lubing-Logo

LUBING Systems, L.P.
135 Corporate Dr, SW
Cleveland, TN 37311

P: 205-902-3478
